Outboard Motor Drawn Cup Needle Bearings

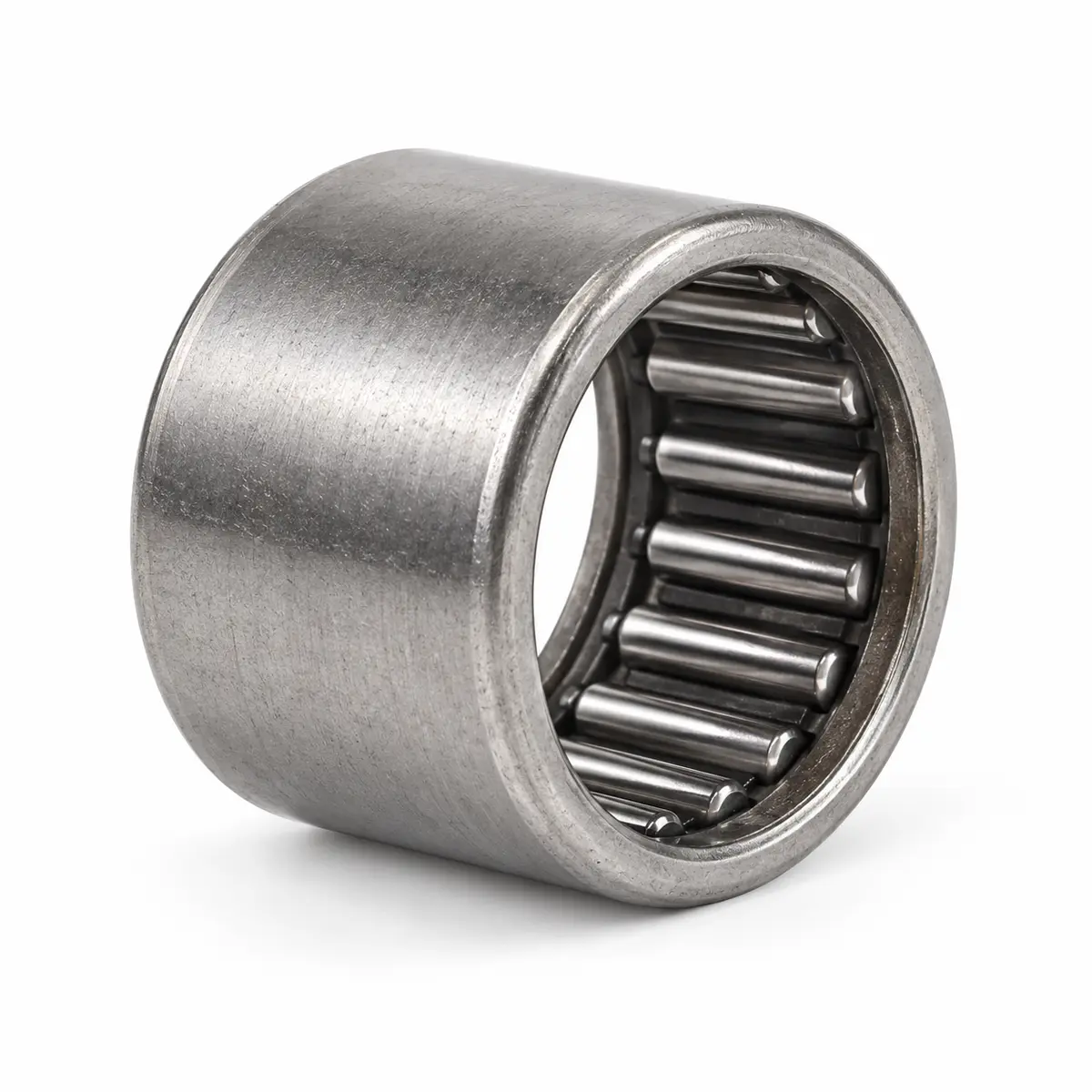

MARATO supplies drawn cup needle roller bearings for selected outboard motor engines, gearboxes and transmission systems. These bearings combine a thin pressed-steel outer shell with needle rollers, providing radial load capacity where installation space is limited.

Available bearing families include HK, F, TA, B and BH series. Different bearing codes may have different bore diameters, outside diameters, widths and outer-shell designs. Compatibility should therefore be confirmed by the bearing code, OE number, dimensions and installation position rather than engine horsepower alone.

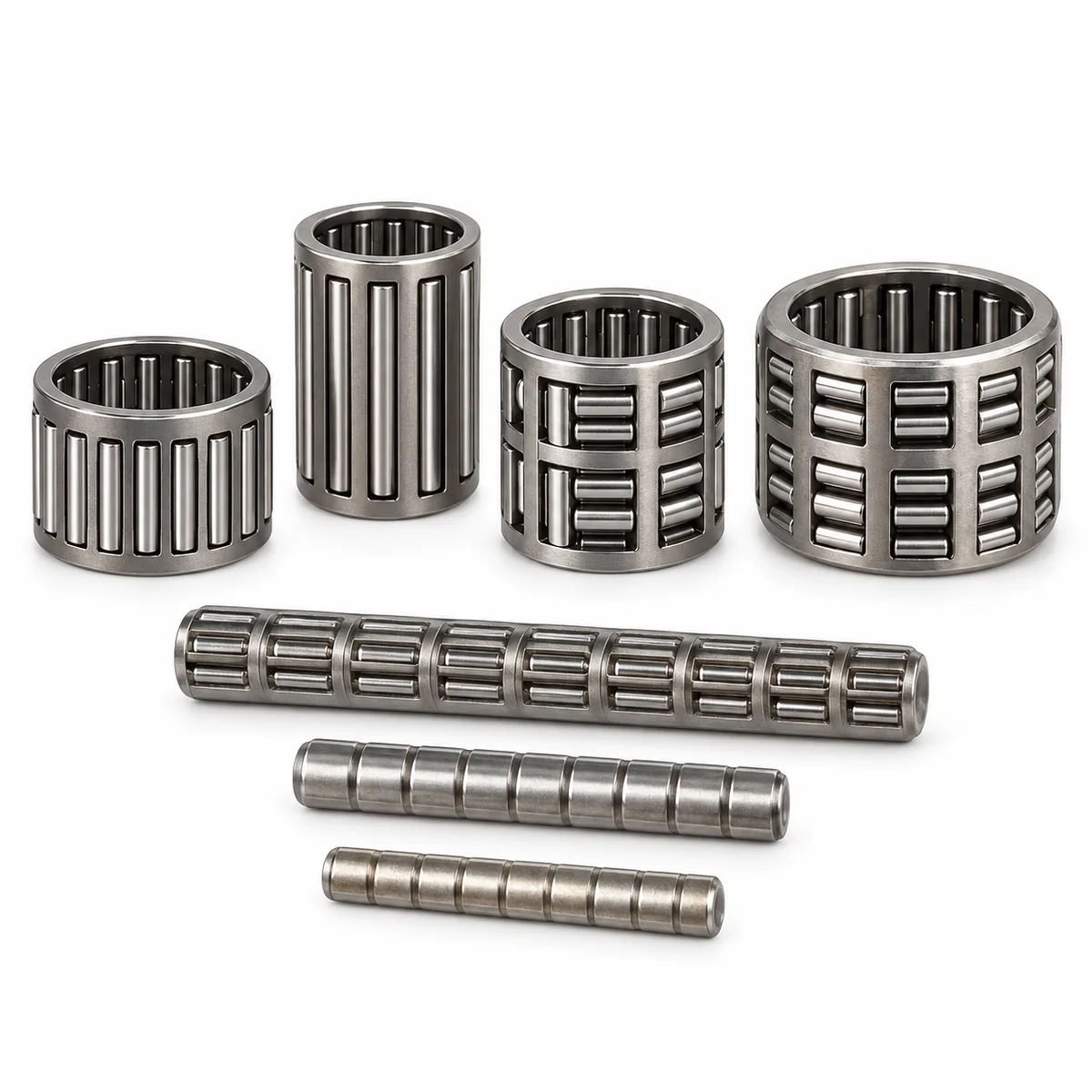

Available Bearing Series

HK series drawn cup needle roller bearings
F series drawn cup needle bearings
TA series needle roller bearings
B series drawn cup bearings
BH series heavy-duty drawn cup needle bearings

Representative Bearing Codes

Available references include HK0910, HK1210, HK1412, HK1416, HK1512, F-142020, TA162420Z, HK1712, F-1712, F-1720, TA172420Z, TA172428, TA182525, HK2012, F-2020, HK2016, TA202730, HK2212, HK2216, HK2220, HK2526, F-253226, F-303720, F-3026, TA3025, B-1316, B-1412, B-1416, B-1516, B-1616, BH1620, BH1820 and B-1916.

Bearing Type

Drawn Cup Needle Roller Bearing

Bearing Series

HK, F, TA, B, BH

Application

Outboard Motor Engine, Gearbox, Transmission Shaft

Bearing Code

According to customer requirement

OE Number

According to engine model

Inside Diameter

According to bearing code

Outside Diameter

According to bearing code

Width

According to bearing code

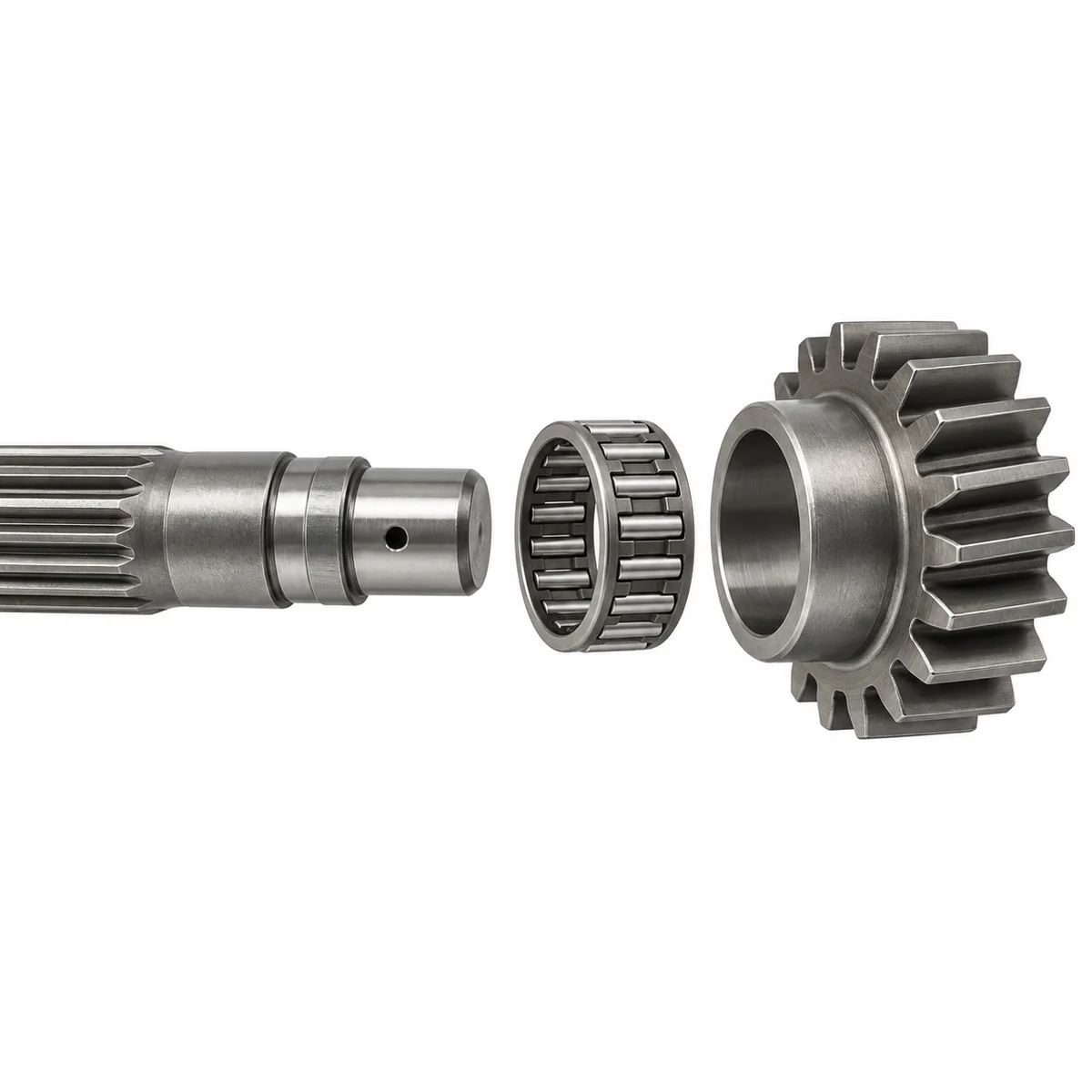

Installation Position

Gearbox Housing, Drive Shaft, Engine Shaft

Compatible Brand

Yamaha, Tohatsu, Suzuki, Mercury, Aftermarket Models

Supply Type

Replacement, Wholesale, OEM

Typical Applications

Outboard motor gearbox housings
Transmission and drive shafts
Engine shaft support positions
Marine equipment repair and replacement
Aftermarket outboard motor maintenance

Compatibility Information

Selected bearing codes may be used in Yamaha, Tohatsu, Suzuki, Mercury and compatible aftermarket outboard motor applications. Brand names and horsepower ranges are for reference only. The same engine series may use different bearings depending on production year, shaft position and gearbox configuration.

Information Required for Bearing Selection

To confirm the correct bearing, please provide:

Outboard motor brand and model
Engine horsepower and production year
Original bearing code
OE or replacement part number
Inside diameter, outside diameter and width
Installation position
Photos of the original bearing and housing
Required quantity

Product Range Clarification

This page covers needle bearings with a drawn outer shell. Cage-only K, KVE, KTE, KTUE and KS needle roller assemblies are listed separately. AXK thrust needle bearings are also listed on a separate product page. This separation helps customers identify the correct bearing construction and prevents ordering errors.

Wholesale and OEM Supply

MARATO supplies outboard motor bearings to importers, wholesalers, marine repair workshops and equipment parts distributors. Samples, mixed bearing sizes, bulk quantities, customized packaging and OEM branding are available. Please contact us with your bearing list for confirmation and quotation.
