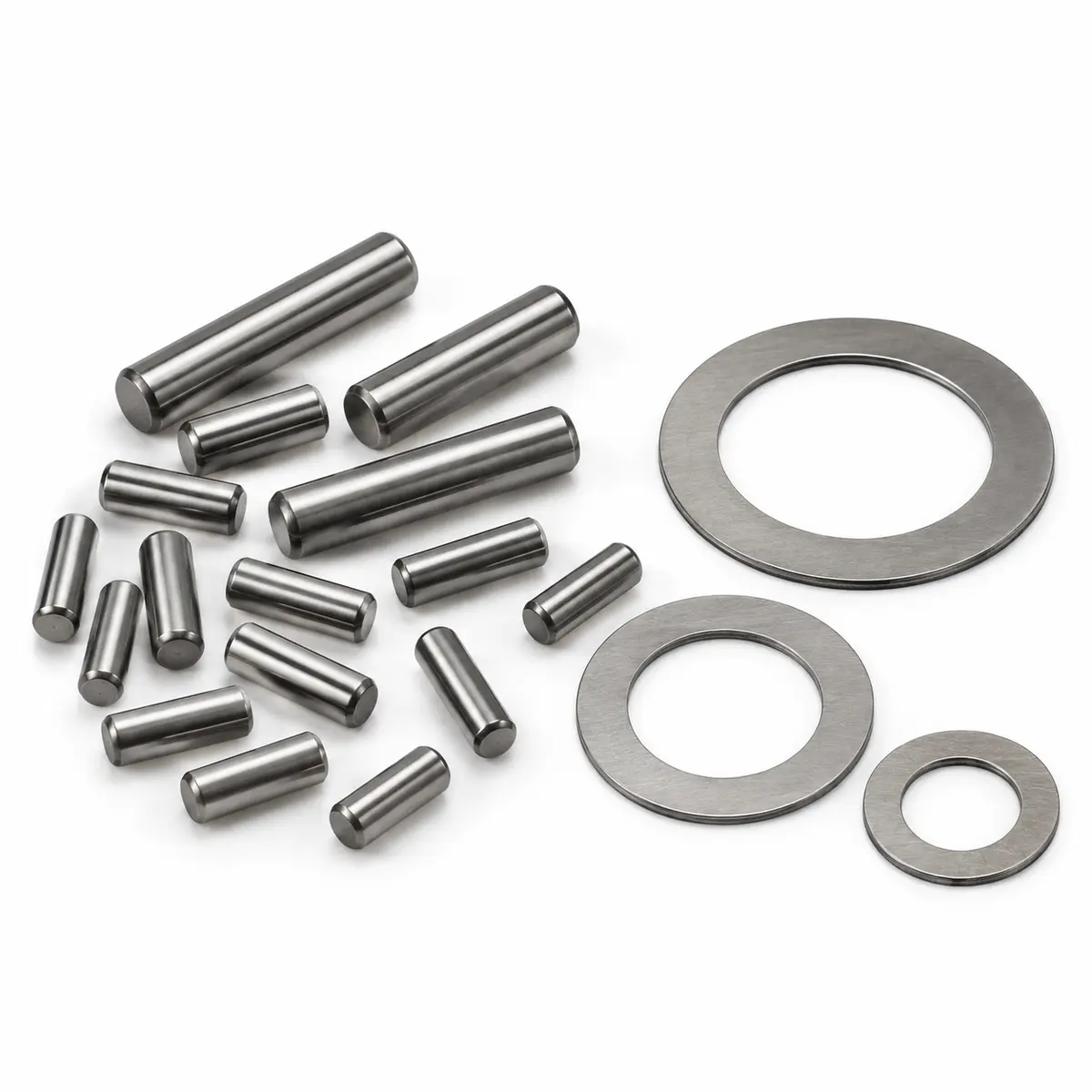

Outboard Motor Loose Needle Rollers and Bearing Washers

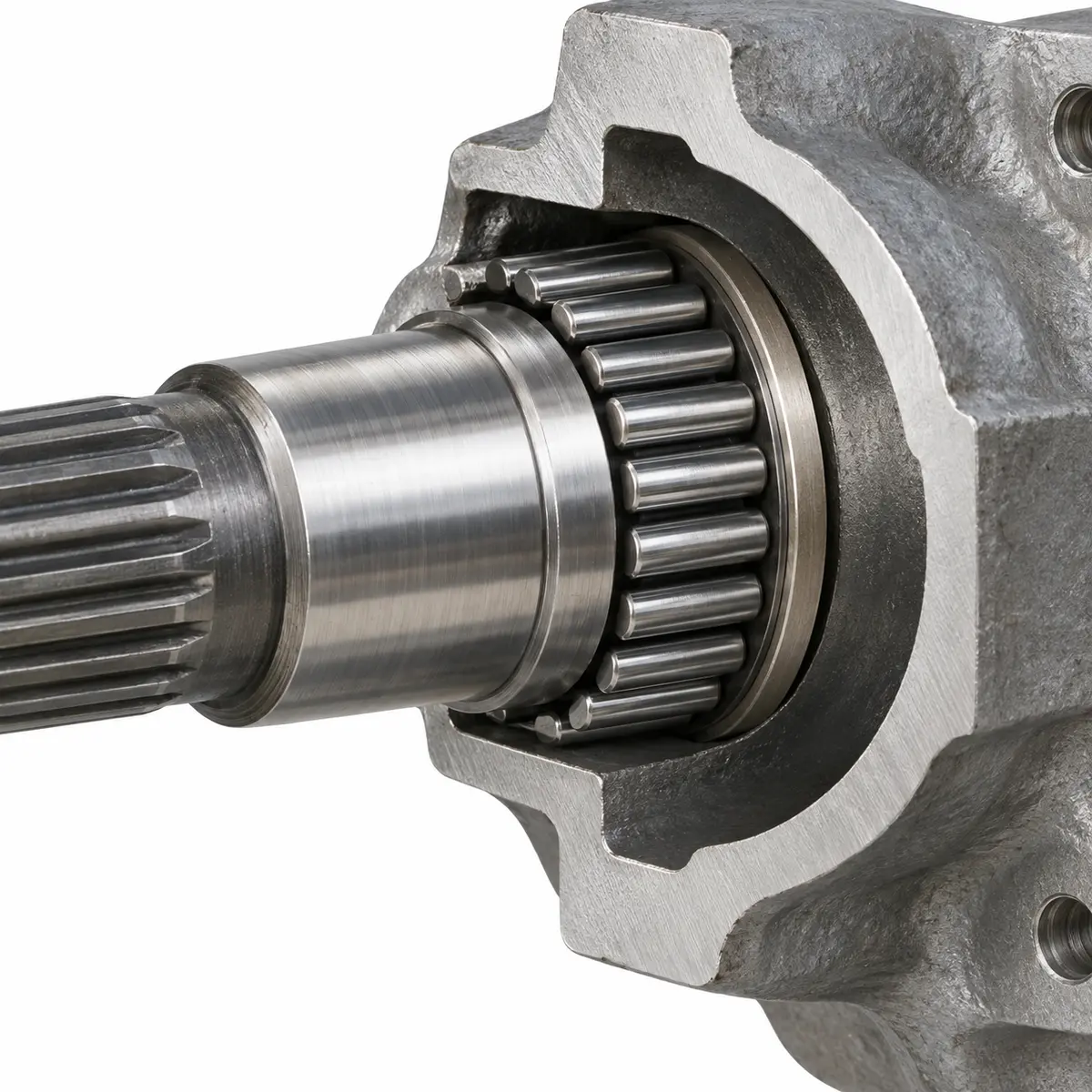

MARATO supplies precision loose needle rollers and bearing washers for selected outboard motor gearbox, shaft and transmission repairs. These components are suitable for bearing positions where individual needle rollers run directly between a hardened shaft journal and a prepared housing bore.
Loose needle rollers provide radial load support while using very little installation space. Precision bearing washers and shims are used for positioning, spacing and controlling axial clearance in selected outboard motor assemblies.
Available Product Types
- Loose cylindrical needle rollers
- Precision-ground bearing rollers
- Flat bearing washers and spacing shims
- Individual sizes and mixed repair quantities
- Components matched by OE number or exact dimensions

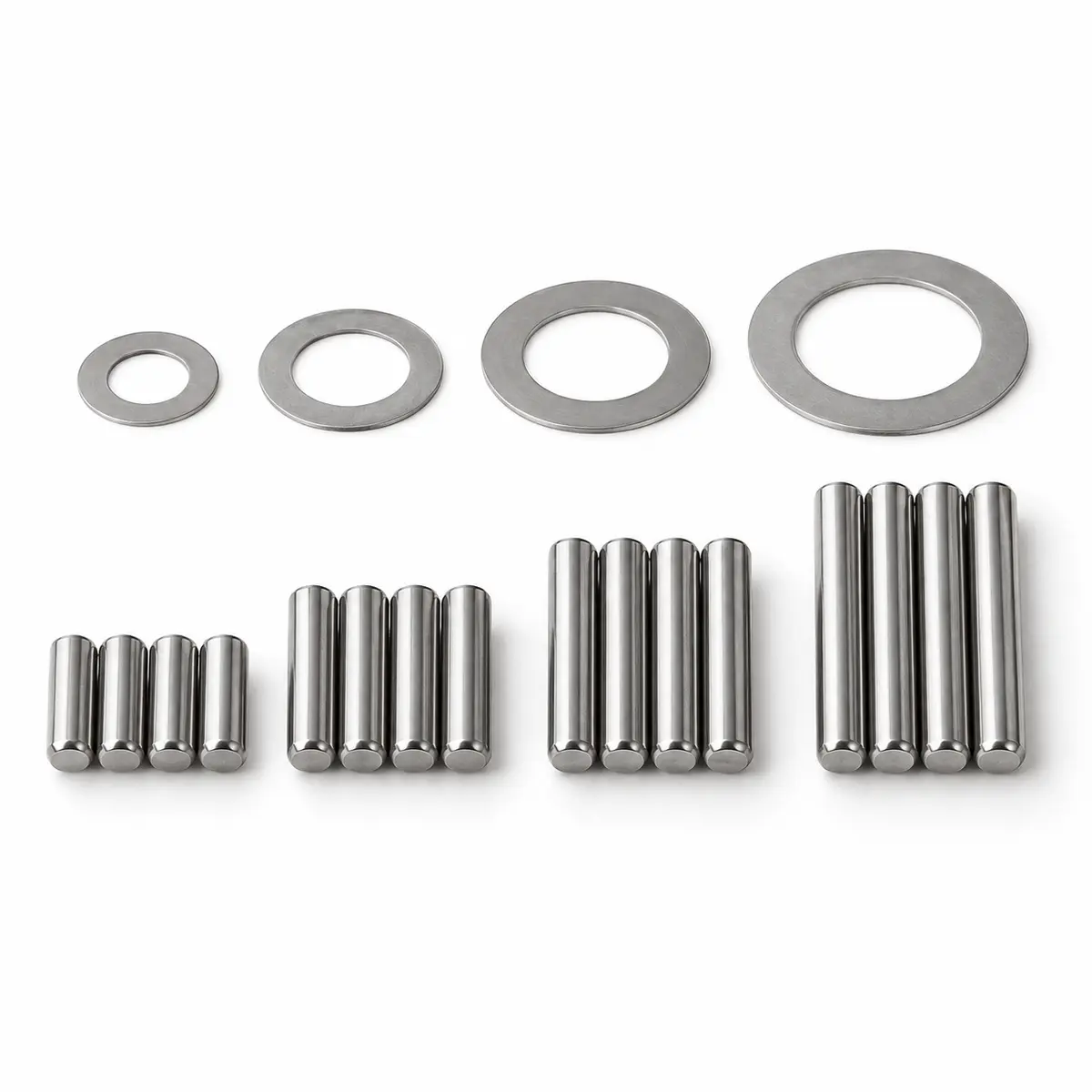

Representative Loose Needle Roller Sizes
| Roller Size | Reference OE Number | Reference Application |
|---|---|---|
| 2 × 14 mm | 93602-14014 | Selected 15 HP applications |
| 2 × 16 mm | 93602-16M10 | Selected outboard motor applications |
| 2 × 20 mm | 93602-20M02 | Selected 20–50 HP applications |
| 2.5 × 17.8 mm | 93603-18M09 | Selected 25–70 HP applications |
| 2.5 × 21 mm | 93603-21111 | Selected 40–225 HP applications |
| 3 × 11.7 mm | 93603-12M11 | Selected outboard motor applications |
| 4 × 8 mm | 93604-08062 | Selected outboard motor applications |
| 4 × 10 mm | 93604-10M03 | Selected outboard motor applications |
| 4 × 12 mm | 93604-12M07 | Selected outboard motor applications |
| 8 × 12 mm | 93608-12063 | Selected outboard motor applications |
Representative Bearing Washer Sizes
- 3 × 8 × 1 mm – OE reference 90201-03313
- 11 × 18 × 2 mm – OE reference 90201-11M49
- 14 × 18.5 × 1.2 mm – OE reference 90201-14377
- 14 × 20.6 × 0.5 mm – OE reference 68T-12116-00
- 17 × 22 × 1.5 mm – OE reference 90201-17682
- 20 × 23.5 × 2.3 mm – OE reference 90201-20M27
- 20.2 × 24.2 × 1.4 mm – OE reference 90201-20417
All dimensions and horsepower ranges are reference information. The correct component must be confirmed by the original OE number, measured dimensions, installation position and outboard motor configuration.
Typical Applications
- Outboard motor gearbox repair
- Drive-shaft bearing positions
- Transmission shaft support
- Connecting and rotating assemblies
- Axial clearance adjustment with bearing washers
- Marine engine maintenance and rebuilding
How to Select the Correct Components
Please provide the following information before ordering:
- Outboard motor brand and complete model
- Engine horsepower and production year
- Original OE or replacement part number
- Needle roller diameter and overall length
- Required number of rollers per assembly
- Washer inside diameter, outside diameter and thickness
- Gearbox or shaft installation position
- Clear photos of the original components
- Required order quantity
| Attribute name | Values |
|---|---|
| Product Type | Loose Needle Rollers, Bearing Washers |
| Application | Outboard Motor Gearbox, Drive Shaft, Transmission |
| Roller Diameter | 2 mm, 2.5 mm, 3 mm, 4 mm, 8 mm, Customized |
| Roller Length | 8–21 mm, According to OE Number |
| Washer Type | Flat Bearing Washer, Spacing Shim |
| Washer Inside Diameter | According to OE Number |
| Washer Outside Diameter | According to OE Number |
| Washer Thickness | According to OE Number |
| Material | Hardened Bearing Steel |
| OE Number | According to outboard motor model |
| Supply Type | Replacement, Wholesale, OEM |
Important Measurement Information
Loose needle rollers must have consistent diameter, length and surface finish. A small dimensional difference can affect bearing clearance and shaft operation. Measurements should be taken with suitable precision tools rather than estimated from engine horsepower alone.
Product Range Clarification
This page covers individual loose needle rollers and flat bearing washers. Complete K, KVE, KTE, KTUE and KS needle roller cage assemblies are listed separately. AXK thrust needle bearing kits and HK, F, TA, B and BH drawn-cup bearings also have separate product pages.
Wholesale and OEM Supply
MARATO supplies outboard motor bearing components to importers, wholesalers, marine repair workshops and aftermarket parts distributors. Mixed dimensions, samples, bulk quantities, customized packaging and OEM branding are available.
