Outboard Motor Thrust Needle Roller Bearings and Washers
MARATO supplies thrust needle roller bearings and matching steel washers for selected outboard motor gearbox, drive-shaft and transmission applications. Their flat axial design provides load support while requiring limited installation space.

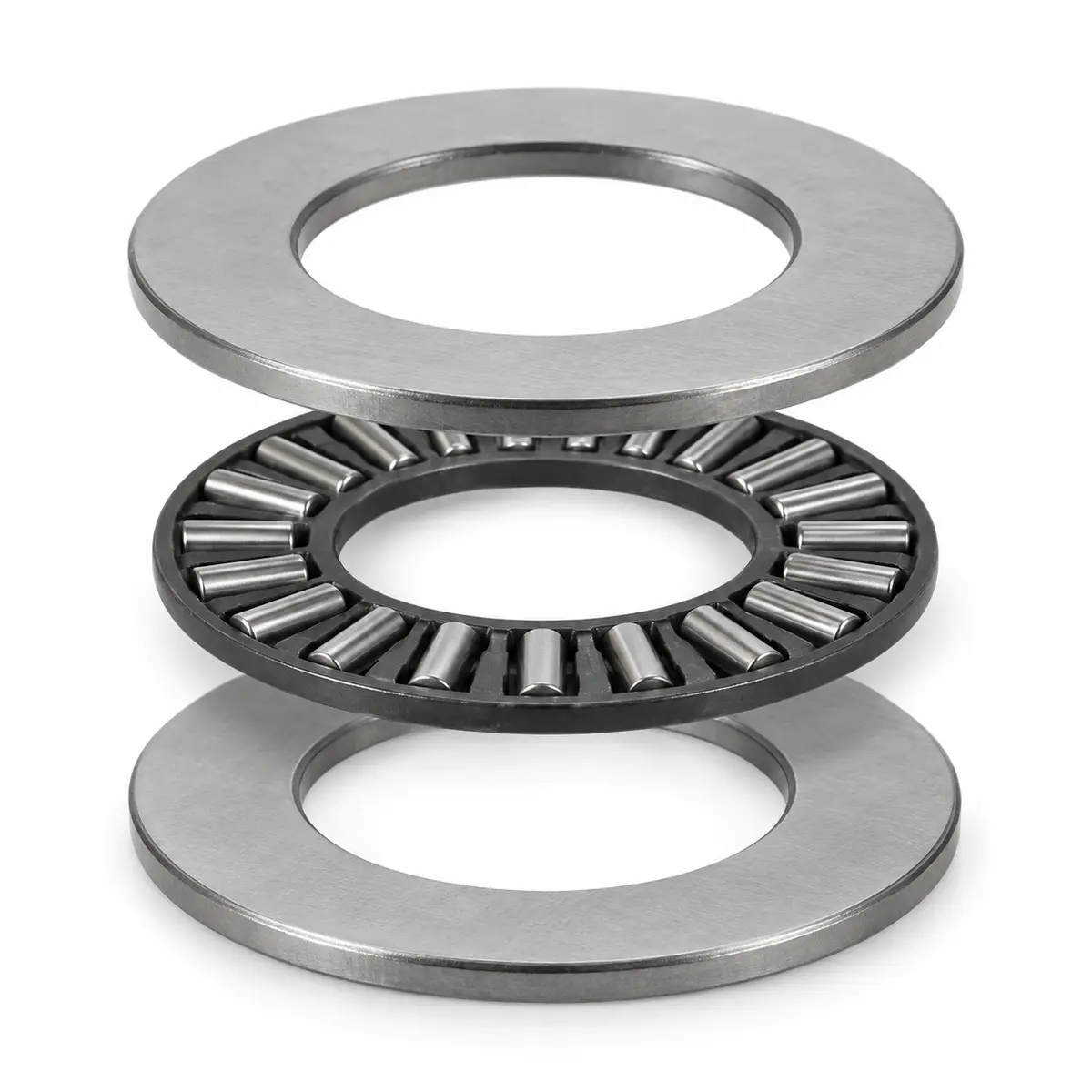

A typical assembly consists of one AXK needle roller and cage unit positioned between two hardened steel thrust washers. The bearing supports axial loads, while the washers provide suitable running surfaces for the needle rollers.
Available Bearing Configurations
- AXK thrust needle roller and cage assembly
- AXK bearing supplied with two steel thrust washers
- Steel-cage and selected composite-cage configurations
- Individual bearings or complete bearing-and-washer kits
- Replacement bearings matched by OE number and dimensions

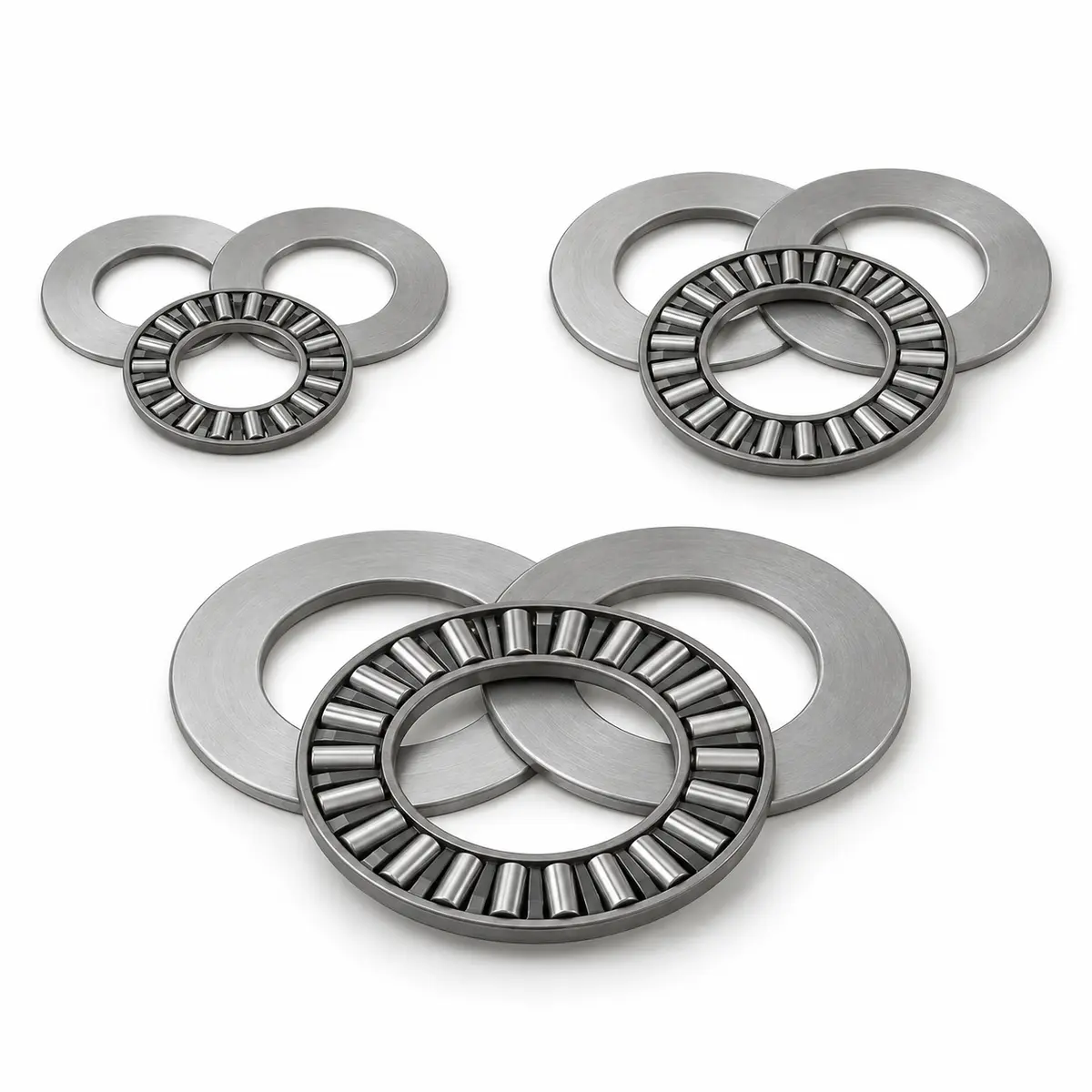

Representative Sizes and References
| Bearing Reference | Reference OE Number | Reference Horsepower |
|---|---|---|
| AXK1429 + 2AS | 93341-414V1 | 8 / 9.9 / 15 HP |
| AXK1429 + 2AS, selected configuration | 93341-41414 | 9.9 / 13.5 / 15 HP |
| AXK20 × 35 × 4.5TN | 09263-20024-NTN / 09263-20L04 | 8 / 9.9 / 15 / 20 HP |
| AXK25 × 42 × 5TN | 09263-25062-NTN | 40 / 50 HP |
The listed horsepower ranges and OE numbers are reference information only. Actual compatibility can vary according to the outboard motor brand, model, production year, gearbox design and installation position.
| Attribute name | Values |
|---|---|
| Bearing Type | Thrust Needle Roller Bearing |
| Bearing Series | AXK |
| Components | Needle Roller Cage, Two Thrust Washers |
| Available Sizes | AXK1429, 20×35×4.5 mm, 25×42×5 mm |
| Application | Outboard Motor Gearbox, Drive Shaft, Transmission |
| Load Direction | Axial Load |
| OE Number | According to outboard motor model |
| Inside Diameter | According to bearing reference |
| Outside Diameter | According to bearing reference |
| Bearing Thickness | According to bearing reference |
| Washer Configuration | Two Steel Thrust Washers |
| Supply Type | Replacement, Wholesale, OEM |
Typical Applications
- Outboard motor gearbox shafts
- Drive-shaft axial support positions
- Marine transmission assemblies
- Propeller-shaft related bearing positions
- Outboard motor repair and maintenance
How to Select the Correct Thrust Bearing
Before ordering, please provide the following information:
- Outboard motor brand and complete model
- Engine horsepower and production year
- Original OE or replacement part number
- Bearing inside diameter, outside diameter and thickness
- Quantity and dimensions of the matching washers
- Installation position in the gearbox or shaft assembly
- Clear photos of the original bearing and washers
- Required order quantity
Product Range Clarification
This product page covers flat axial thrust needle roller bearings and matching thrust washers. Drawn-cup radial needle bearings in HK, F, TA, B and BH series are listed separately. K, KVE, KTE, KTUE and KS cage-only radial needle roller assemblies are also listed on a separate page.
Wholesale and OEM Supply
MARATO supplies outboard motor bearings and marine replacement parts to importers, wholesalers, repair workshops and equipment-parts distributors. Samples, mixed bearing sizes, bulk quantities, customized packaging and OEM branding are available.
Please send the OE number, bearing dimensions, outboard motor information and original part photos so that we can help confirm the appropriate bearing configuration.
